Quarter Turn Actuators

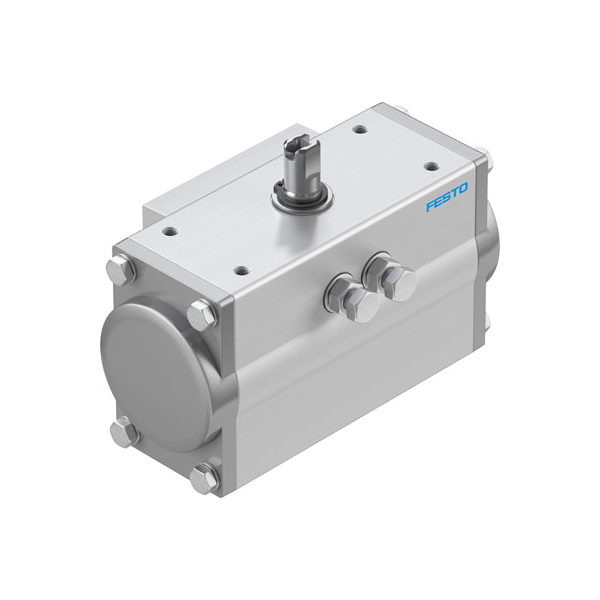

DFPD quarter turn actuators
For a completely automated process solution, use in conjunction with the corresponding sensor box or positioner and valve.
- Available sizes: 10,20, 40, 80, 120, 160, 240, 300, 480
- Torque at operating pressure 6 bar: 10 - 480 Nm
- Standard operating temperature: -20°C – 80°C and high and low temperature options available.
- ISO 5211 Flange hole button
- Actuator ports to NAMUR standard pattern
- Available in double acting or single acting
Contact us today for a solution to your requirements.
